fanatec dd pro pedals Fanatec Gran Turismo DD Pro Premium Version – simhour

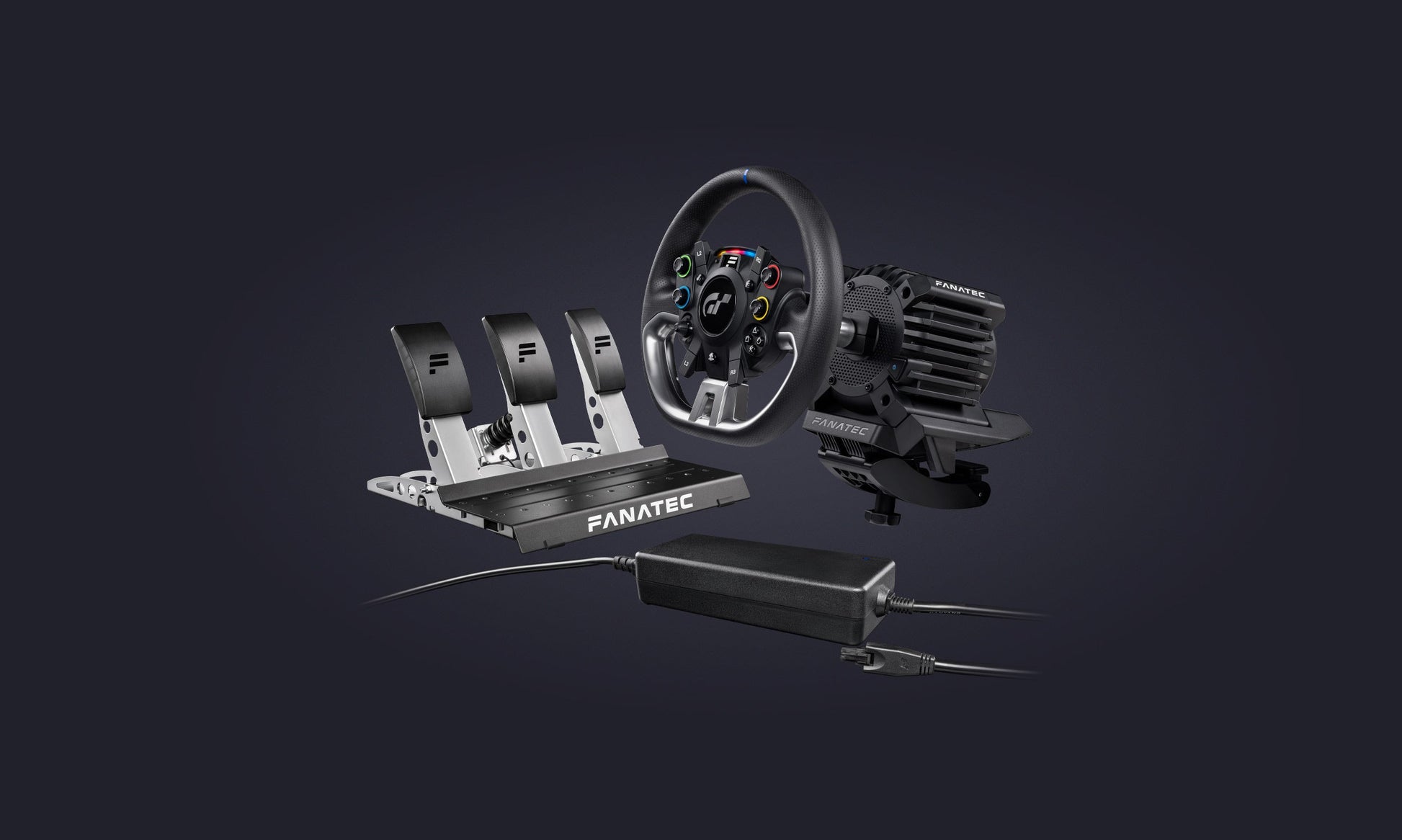

fanatec dd pro pedals Fanatec Gran Turismo DD Pro Premium Version – simhourGran Turismo DD Pro. Direct Drive for everyone. Introducing the official Direct Drive Wheel for Gran Turismo. Combining PlayStation5 console performance with FANATEC Direct Drive technology for the smoothest and most dynamic force feedback sensations. TECHNOLOGY REVOLUTION. In 2001, Gran Turismo 3 introduced breakthrough force feedback technology to PlayStation. Developed simultaneously with the CSL DD, it is once again a Gran Turismo wheel which

Gran Turismo DD Pro. Direct Drive for everyone.

Introducing the official Direct Drive Wheel for Gran Turismo®. Combining PlayStation®5 console performance with FANATEC® Direct Drive technology for the smoothest and most dynamic force feedback sensations.

TECHNOLOGY REVOLUTION.

In 2001, Gran Turismo™ 3 introduced breakthrough force feedback technology to PlayStation®. Developed simultaneously with the CSL DD, it is once again a Gran Turismo wheel which introduces next-generation force-feedback technology to the mass market: Direct Drive.

ONCE YOU FEEL IT, THERE’S NO GOING BACK.

When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Direct Drive is the clear choice of all professional drivers and enthusiast sim racers, and it’s now available to a broader audience.

Maximum strength.

The Gran Turismo DD Pro Premium Bundle includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.

8 NM PEAK TORQUE.

Using the included Boost Kit 180, the Gran Turismo DD Pro operates in its 8 Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too.

SMALL SIZE. HUGE PERFORMANCE.

This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink.

Steering wheel designed by Polyphony Digital especially for Gran Turismo.

The steering wheel for Gran Turismo DD Pro provides the perfect interface between you and the game. Full Fanatec SDK support ensures compatibility out of the box for all major racing games.

DESIGNED FOR GRAN TURISMO.

The white OLED display and diffused RevLED strip offers useful visual information while driving and operating the Fanatec Tuning Menu. A unique array of four 5-way directional sticks sit alongside the familiar PlayStation® inputs.

COMPACT AND RESPONSIVE.

Built for comfort and response, the 280 mm diameter and round shape is suitable for the wide variety of vehicles available in Gran Turismo. The tactile rubber grip and ergonomic paddle shifters mean you’ll always feel in control.

High resolution pedal set with load cell brake.

This isn’t your typical bundled pedal set. The pedals for Gran Turismo DD Pro are solidly built from steel, with precise and durable Hall sensors that allow you to stay in control with smooth throttle and brake inputs. The included CSL Pedals Load Cell Kit completely replaces the brake pedal and upgrades the electronics. The standard brake pedal can then be used as a clutch pedal. The CSL Pedals Load Cell Kit is the ultimate upgrade for immersion, precision, and consistency.

HEAVY STEEL CONSTRUCTION, MAGNETIC SENSORS.

The all-metal design is built to last, and both the throttle and brake axes use contactless Hall sensors for precision and durability.

FEELING UNDER PRESSURE.

A load cell brake system measures pressure rather than travel. This means the feeling is much more like braking in a real car, and you can quickly train your muscle memory.

FEATURES

Gran Turismo DD Pro Wheel Base:

• The official Direct Drive Wheel for Gran Turismo
• Boost Kit 180 (included with Premium Bundle) unlocks maximum strength (8 Nm peak torque)
• Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
• Direct-Drive system delivers instant, detailed force feedback
• Linear, consistent performance
• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
• Full Fanatec SDK support ensures compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium Series
• Steering axis made from carbon fibre-enhanced composite
• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base
• Automotive-grade quick release, exchangeable
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Table clamp included, supports 5 to 60 mm table thickness
• Ports:
• Power supply
• USB-C to console / PC
• Shifter 1
• Shifter 2 (Sequential only)
• Pedals
• Handbrake
• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

Steering wheel for Gran Turismo DD Pro:

• Designed by Polyphony Digital
• Tactile rubber grip with blue centre stripe
• Compact 280 mm diameter and light weight for crisp response
• Diffused RevLED strip (yellow, red, and blue LEDs)
• White OLED display for Tuning Menu access and telemetry output (where supported)
• 5-way directional stick for menu navigation
• Four additional 5-way directional sticks
• Ergonomic shifter paddles
• 11 buttons optimised for the PlayStation® interface
• Fiberglass-reinforced plastic construction
• Exchangeable QR1 Lite Wheel-Side quick release system

Pedals for Gran Turismo DD Pro + CSL Pedals Load Cell Kit:

• Three-pedal set (clutch, brake, throttle)
• All-metal construction (excluding pedal faces).
• Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
• Contactless Hall sensors (12-bit) on both clutch and throttle for high precision and durability
• Clutch pedal spring is stiffer than throttle pedal spring
• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest
• Custom-designed load cell sensor
• 12-bit precision
• Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)
• Heavy-duty elastomer stack with 65 Shore hardness
• Upgraded electronics
• USB or RJ12 connection (USB means you can use the CSL Pedals as a standalone USB device on PC)
• Manual calibration of Min and Max values possible, settings saved to the internal memory
• Pedals connect directly to Gran Turismo DD Pro Wheel Base

COMPATIBILITY

Peripherals

The Gran Turismo DD Pro Wheel Base is compatible with:

• All Fanatec Podium Steering Wheels
• All Fanatec ClubSport Steering Wheels
• All Fanatec CSL Steering Wheels
• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
• All Fanatec Shifters
• Fanatec ClubSport Handbrake
• All Fanatec Cockpits
• ClubSport Table Clamp V2
• Podium Mounting Brackets (the Gran Turismo DD Pro includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Please note: Compatibility with all peripherals is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

The steering wheel for Gran Turismo DD Pro is compatible with:

• Gran Turismo DD Pro wheel base
• CSL DD
• All Podium Wheel Bases
• ClubSport Wheel Base V2 (without four additional D-sticks)
• ClubSport Wheel Base V2.5
• CSL Elite Wheel Base V1 / V1.1 (without four additional D-sticks)
• CSL Elite Wheel Base +

Note: The steering wheel for Gran Turismo DD Pro does NOT enable PlayStation® compatibility when used with a non-PlayStation-licensed wheel base. A PlayStation-licensed wheel base (such as the Gran Turismo DD Pro Wheel Base) is required for use on PlayStation®4 and PlayStation®5.

The pedals for Gran Turismo DD Pro is compatible with:

• CSR / CSR Elite Wheel Base
• All CSL Elite Wheel Bases
• All ClubSport Wheel Bases
• All Podium Wheel Bases
• GT DD Pro Wheel Base
• CSL DD Wheel Base

Please refer to the Gran Turismo DD Pro manual for full pedal compatibility information.

Platforms

• This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
• This product is compatible with PC on all major racing games.
• Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

PACKAGING DETAILS

• Dimensions (L x W x H)41cm x 40.5cm x 38cm
• Weight10.1kg
• Volume weight13.16kg

WHAT'S INCLUDED

• Gran Turismo DD Pro direct drive wheel base
• Steering wheel for Gran Turismo DD Pro
• Pedals for Gran Turismo DD Pro (two-pedal set)
• Table clamp
• 90W power supply (regional)
• Boost Kit 180 power supply (regional)
• CSL Pedals Load Cell Kit
• 4x T-nuts for rail mount system
• USB cable (Type-C to Type-A)
• RJ12 connection cable for pedals
• Pedal spacers for hard-mounting
• Torx Key
• Quick Guide

TECHNICAL SPECIFICATIONS

• Adjustable springYes
• Table ClampIncluded
• Adjustable FF strengthYes
• Adjustable sensitivityYes
• Quick releaseExchangeable
• Connection portsHandbrake, Pedals, Shifter 1, Shifter 2
• Rev lightsYes
• Cooling systemPassive (fanless)
• Rev Lights on Wheel BaseNo
• Degrees of rotationUp to 2520°
• TorqueUp to 8Nm
• Detachable button capsNo
• Tuning Menu through steering wheelYes
• Diameter280mm
• Display1" 128x64 OLED
• USB update rate1000Hz
• Force Feedback drive systemDirect Drive
• Funky switch5-way
• Grip materialOvermolded rubber
• Hardmount3-hole pattern, Adjustable hole positions (T-slot), Sidemount 2-hole pattern on each side
• Mode ButtonIntegrated with power button
• Paddle shifter adjustabilityNo
• PlatformPC, PS4, XBox One Ready
